Oil Free Dry Scroll Vacuum Pump 16m3/h,IDSP16 Painting Surface Air Cooled

Product Categories
Ningbo Baosi Energy Equipment Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Oil Free Dry Scroll Vacuum Pump 16m3/h,IDSP16 Painting Surface Air Cooled

  • 1
  • 2
  • 3

Brand Name : BSC

Model Number : IDSP16

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : Negotiate

Payment Terms : T/T

Supply Ability : 200 sets per month

Delivery Time : 5-30 days

Packaging Details : wooden box

Ultimate Vacuum : 0.008mbar (0.8Pa)

Color : Blue/Grey

Speed : 4L/s (16m3/h)

Operating Temp. : 5~40℃

Dimensions : 430*274*313mm

Surface : Painting

Weight : 29kg

Cooling method : air cooling

Contact Now

16 m³/h Dry Scroll Vacuum Pump IDSP16, Sky Blue, Air cooling, Oil-Free

Description

The Scroll pump is a new kind of oil-free mechanical pump with the features of compact construction, hermetically sealing, high vacuum, etc. Improved performance, exceptional pumping capability, and quiet operation make IDSP the ultimate dry choice. As a high-technology product, it has highly technical requirements in design and manufacture. With the benefits of low consumption, long working life, high reliability, and low noise, it has the incomparable advantage in the application of clean processes and has been popular used in the market. In order to meet the featured applications of domestic and overseas customers, Baosi Vacuum developed the IDSP series dry scroll pump with excellent performance and high-cost efficiency.

​Technical Data

Model IDSP16
Nominal rotational speed rpm 1800
Displacement m³h-1 16
Motor power W

400
Ultimate Vacuum mbar 0.008
Voltage input V 1-ph, 100-120/200-240
Noise level dB (A) 54
Inlet flange - KF25
Exhaust flange - KF25
Max water vapour pumping rate gh-1 268
Leak tightness mbar ls-1 ＜1×10-6
Weight kg 29
Cooling Method - Air-cooled

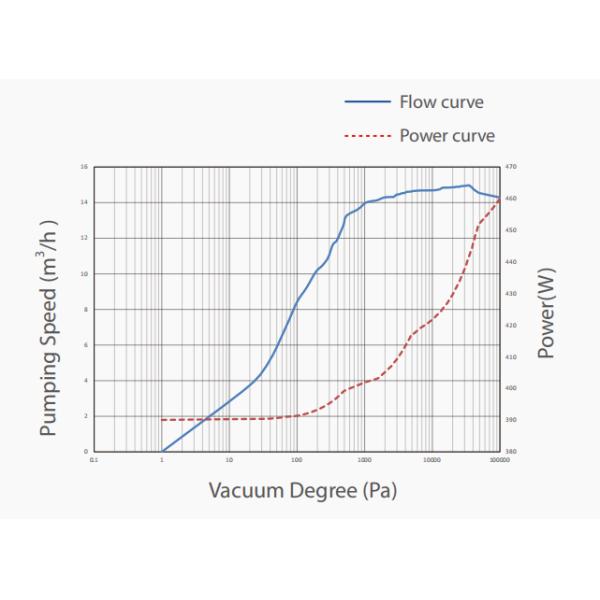

Performance Curve

Oil Free Dry Scroll Vacuum Pump 16m3/h,IDSP16 Painting Surface Air Cooled

Dimensions

Oil Free Dry Scroll Vacuum Pump 16m3/h,IDSP16 Painting Surface Air Cooled

Application

  • Electron microscopy
  • High energy physics
  • Mass spectrometry
  • Glove box
  • Beam welding/laser welding
  • Space simulation
  • Coating(PVD/CVD)

Oil Free Dry Scroll Vacuum Pump 16m3/h,IDSP16 Painting Surface Air Cooled
